伪共享 FalseSharing

目录#

• 概念
• 应用
• 伪共享测试代码
• 参考：

概念#

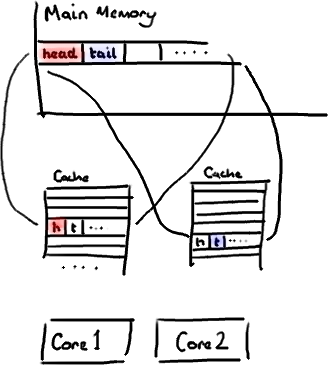

伪共享 FalseSharing

应用#

1. jdk8 LongAdder的Cell类

2. Disruptor

伪共享测试代码#

package test;

/*
-- 有cache line padding 测试结果
1. duration = 22344563916
2. duration = 22012580114
3. duration = 11167549431
4. duration = 19736854183

avg: 18815386911

-- 没有cache line padding 测试结果
1. duration = 23658423881
2. duration = 33335707670
3. duration = 35890190024
4. duration = 29516958769
5. duration = 35027213671

avg:  31485698803

result： 性能相差一倍左右
*/
public final class FalseSharing
    implements Runnable
{
    public final static int NUM_THREADS = 4; // change
    public final static long ITERATIONS = 500L * 1000L * 1000L;
    private final int arrayIndex;

    private static VolatileLong[] longs = new VolatileLong[NUM_THREADS];
    static
    {
        for (int i = 0; i < longs.length; i++)
        {
            longs[i] = new VolatileLong();
        }
    }

    public FalseSharing(final int arrayIndex)
    {
        this.arrayIndex = arrayIndex;
    }

    public static void main(final String[] args) throws Exception
    {
        final long start = System.nanoTime();
        runTest();
        System.out.println("duration = " + (System.nanoTime() - start));
    }

    private static void runTest() throws InterruptedException
    {
        Thread[] threads = new Thread[NUM_THREADS];

        for (int i = 0; i < threads.length; i++)
        {
            threads[i] = new Thread(new FalseSharing(i));
        }

        for (Thread t : threads)
        {
            t.start();
        }

        for (Thread t : threads)
        {
            t.join();
        }
    }

    public void run()
    {
        long i = ITERATIONS + 1;
        while (0 != --i)
        {
            longs[arrayIndex].value = i;
        }
    }

    public final static class VolatileLong
    {
        public volatile long value = 0L;
        //public long p1, p2, p3, p4, p5, p6;   comment out
    }
}

测试环境： 笔记本电脑 – Intel（R）Core(TM) i3-3120M CPU @2.50GHz 2.50GHz 内存 10.0GB

参考：#

1. LongAdder类学习小结

2. 剖析Disruptor:为什么会这么快？（二）神奇的缓存行填充
