流量治理-Sentinel

Sentinel #

限流 API [4] #

  1. 定义资源 资源:可以是任何东西,一个服务,服务里的方法,甚至是一段代码。
try (Entry entry = SphU.entry("HelloWorld")) {
    // Your business logic here.
    System.out.println("hello world");
} catch (BlockException e) {
    // Handle rejected request.
    e.printStackTrace();
}
// try-with-resources auto exit
@SentinelResource("HelloWorld")
public void helloWorld() {
    // 资源中的逻辑
    System.out.println("hello world");
}
  1. 定义规则 规则:Sentinel 支持以下几种规则: 流量控制规则、熔断降级规则、系统保护规则、来源访问控制规则和 热点参数规则。
private void initSystemRule() {
    List<SystemRule> rules = new ArrayList<>();
    SystemRule rule = new SystemRule();  // 规则
    rule.setHighestSystemLoad(10);
    rules.add(rule);
    SystemRuleManager.loadRules(rules);
}
FlowRuleManager.loadRules(List<FlowRule> rules); // 流控规则
DegradeRuleManager.loadRules(List<DegradeRule> rules); // 降级规则
SystemRuleManager.loadRules(List<SystemRule> rules); // 系统规则
AuthorityRuleManager.loadRules(List<AuthorityRule> rules); // 授权规则

限流 类型 [2] #

  • 直接失败 [滑动时间窗口]
  • Warmup 预热 [令牌桶算法]
  • 限流排队 [漏桶算法]

分布式限流 [1] #

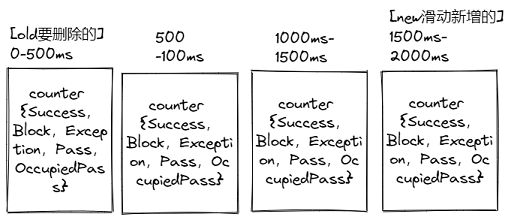

滑动窗口 [2] #

SlidingWindows

核心代码 LeapArray.java

        /*
         * Get bucket item at given time from the array.
         *
         * (1) Bucket is absent, then just create a new bucket and CAS update to circular array.
         * (2) Bucket is up-to-date, then just return the bucket.
         * (3) Bucket is deprecated, then reset current bucket.
         */
        while (true) {
            WindowWrap<T> old = array.get(idx);
            if (old == null) { /// 初始化一个窗口
                /*
                 *     B0       B1      B2    NULL      B4
                 * ||_______|_______|_______|_______|_______||___
                 * 200     400     600     800     1000    1200  timestamp
                 *                             ^
                 *                          time=888
                 *            bucket is empty, so create new and update
                 *
                 * If the old bucket is absent, then we create a new bucket at {@code windowStart},
                 * then try to update circular array via a CAS operation. Only one thread can
                 * succeed to update, while other threads yield its time slice.
                 */
                WindowWrap<T> window = new WindowWrap<T>(windowLengthInMs, windowStart, newEmptyBucket(timeMillis));
                if (array.compareAndSet(idx, null, window)) {
                    // Successfully updated, return the created bucket.
                    return window;
                } else {
                    // Contention failed, the thread will yield its time slice to wait for bucket available.
                    Thread.yield();
                }
            } else if (windowStart == old.windowStart()) { /// 返回老的窗口
                /*
                 *     B0       B1      B2     B3      B4
                 * ||_______|_______|_______|_______|_______||___
                 * 200     400     600     800     1000    1200  timestamp
                 *                             ^
                 *                          time=888
                 *            startTime of Bucket 3: 800, so it's up-to-date
                 *
                 * If current {@code windowStart} is equal to the start timestamp of old bucket,
                 * that means the time is within the bucket, so directly return the bucket.
                 */
                return old;
            } else if (windowStart > old.windowStart()) {  /// 滚动: 重置老的窗口, 增加新的窗口
                /*
                 *   (old)
                 *             B0       B1      B2    NULL      B4
                 * |_______||_______|_______|_______|_______|_______||___
                 * ...    1200     1400    1600    1800    2000    2200  timestamp
                 *                              ^
                 *                           time=1676
                 *          startTime of Bucket 2: 400, deprecated, should be reset
                 *
                 * If the start timestamp of old bucket is behind provided time, that means
                 * the bucket is deprecated. We have to reset the bucket to current {@code windowStart}.
                 * Note that the reset and clean-up operations are hard to be atomic,
                 * so we need a update lock to guarantee the correctness of bucket update.
                 *
                 * The update lock is conditional (tiny scope) and will take effect only when
                 * bucket is deprecated, so in most cases it won't lead to performance loss.
                 */
                if (updateLock.tryLock()) {
                    try {
                        // Successfully get the update lock, now we reset the bucket.
                        return resetWindowTo(old, windowStart);  /// 清零重置old窗口
                    } finally {
                        updateLock.unlock();
                    }
                } else {
                    // Contention failed, the thread will yield its time slice to wait for bucket available.
                    Thread.yield();
                }
            } else if (windowStart < old.windowStart()) {  /// 时钟回拨
                // Should not go through here, as the provided time is already behind.
                return new WindowWrap<T>(windowLengthInMs, windowStart, newEmptyBucket(timeMillis));
            }
        }
    }

Sentinel vs. Hystrix vs. resilience4j [3] #

Sentinel Hystrix resilience4j
隔离策略 信号量隔离(并发线程数限流) 线程池隔离/信号量隔离 信号量隔离
熔断降级策略 基于响应时间、异常比率、异常数等 异常比率模式、超时熔断 基于异常比率、响应时间
实时统计实现 滑动窗口(LeapArray) 滑动窗口(基于 RxJava) Ring Bit Buffer
动态规则配置 支持多种配置源 支持多种数据源 有限支持
扩展性 丰富的 SPI 扩展接口 插件的形式 接口的形式
基于注解的支持 支持 支持 支持
限流 基于 QPS,支持基于调用关系的限流 有限的支持 Rate Limiter
集群流量控制 支持 不支持 不支持
流量整形 支持预热模式、匀速排队模式等多种复杂场景 不支持 简单的 Rate Limiter 模式
系统自适应保护 支持 不支持 不支持
控制台 提供开箱即用的控制台,可配置规则、查看秒级监控、机器发现等 简单的监控查看 不提供控制台,可对接其它监控系统
多语言支持 Java / C++ Java Java
开源社区状态 活跃 停止维护 较活跃
