(实战)多模态 RAG

多模态RAG-多向量检索器 [10][11] #

semi-structured (tables + text) RAG [20] #

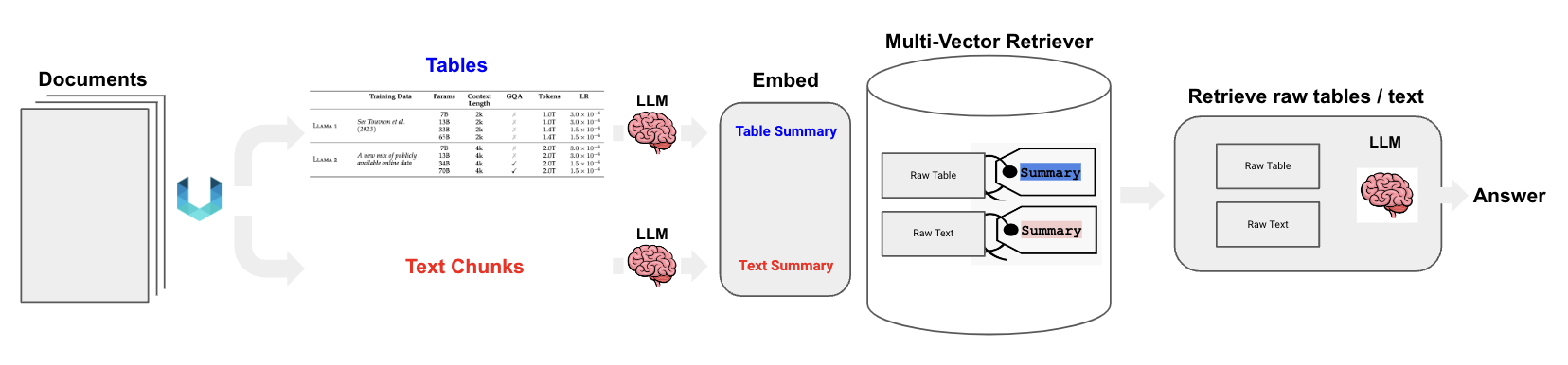

1.png 分析pdf中表格

multi-modal (text + tables + images) RAG [13] #

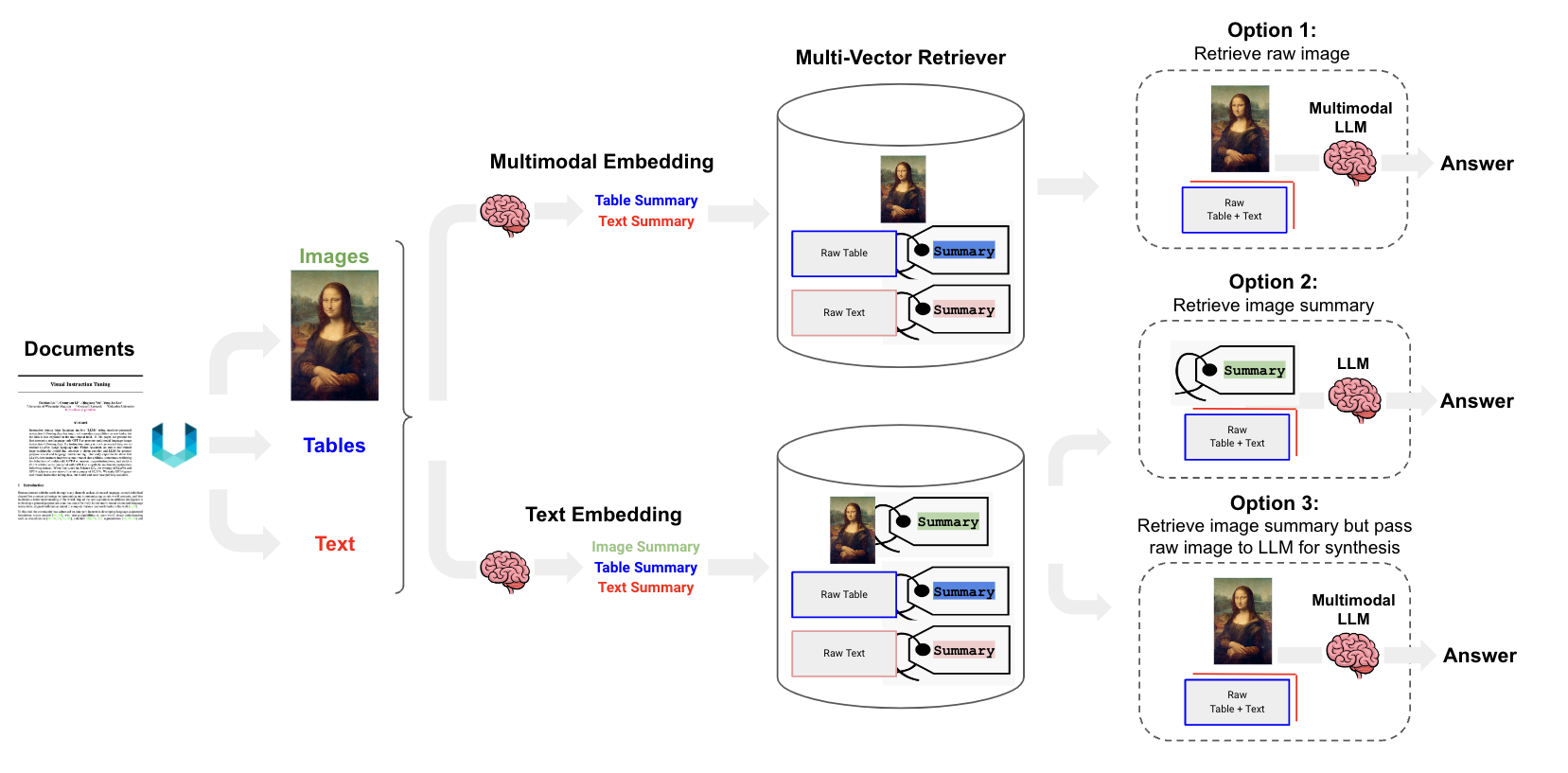

2.png 分析PDF中图片

  • Option 1 [基于CLIP] [23] [30][32][33]

    • Use multimodal embeddings (such as CLIP) to embed images and text
    • Retrieve both using similarity search
    • Pass raw images and text chunks to a multimodal LLM for answer synthesis
      {选项1：对文本和表格生成summary，然后应用多模态embedding模型把文本/表格summary、原始图片转化成embedding存入多向量检索器。对话时，根据query召回原始文本/表格/图像。然后将其喂给多模态LLM生成应答结果。}[10]

  • Option 2 [21]

    • Use a multimodal LLM (such as GPT4-V, LLaVA, or FUYU-8b) to produce text summaries from images
    • Embed and retrieve text
    • Pass text chunks to an LLM for answer synthesis
      【将图片转成摘要，和其他文本信息整合在文本粒度进行检索】[12]
      {选项2：首先应用多模态大模型（GPT4-V、LLaVA、FUYU-8b）生成图片summary。然后对文本/表格/图片summary进行向量化存入多向量检索器中。当生成应答的多模态大模型不具备时，可根据query召回原始文本/表格+图片summary。}[10]

  • Option 3 [24] [31][34]

    • Use a multimodal LLM (such as GPT4-V, LLaVA, or FUYU-8b) to produce text summaries from images
    • Embed and retrieve image summaries with a reference to the raw image
    • Pass raw images and text chunks to a multimodal LLM for answer synthesis
      【实际模型输入使用的是图片】
      【图片概要依然是用于检索（GPT-4V，LLaVA，FUYU-8b）】[12]
      {选项3：前置阶段同选项2相同。对话时，根据query召回原始文本/表格/图片。构造完整Prompt，访问多模态大模型生成应答结果。}[10]

private multi-modal (text + tables + images) RAG [22] #

组件 #

  • pdf解析
    unstructured
  • store
    MultiVectorRetriever - 元数据+数据

参考 #

实战 #

  1. 检索增强生成（RAG）有什么好的优化方案？

  2. Multi-Vector Retriever for RAG on tables, text, and images ***
    基于多向量检索器的多模态RAG实现：用于表格、文本和图像

  3. langchain的multi model RAG-以多模态pdf文件为例子

  4. Multi-modal RAG on slide decks

1xx. Using Multi-Modal LLMs page21

notebook #

  1. Semi_Structured_RAG notebook
    Advanced-RAG semi_structured_data notebook {半结构化-解析pdf中的表格， 运行没问题，能问表格中的数据}

  2. Semi_structured_and_multi_modal_RAG notebook

  3. Private Semi-structured and Multi-modal RAG w/ LLaMA2 and LLaVA notebook {多模态- 解析pdf中的图片 运行有问题}
    Private Semi-structured and Multi-modal RAG w/ LLaMA2 and LLaVA notebook

  4. Chroma multi-modal RAG notebook

  5. Multi-modal RAG notebook

template (失效了) #

  1. rag-multi-modal-local
    OpenCLIP(image embedding) + bakllava(answer synthesis)
  2. rag-multi-modal-mv-local
    bakllava(image summaries embedding) + bakllava (answer synthesis)
  3. rag-chroma-multi-modal
    OpenCLIP(image embedding) + GPT-4V (answer synthesis)
  4. rag-gemini-multi-modal
    OpenCLIP(image embedding) + Gemini(answer synthesis)
  5. rag-chroma-multi-modal-multi-vector
    GPT-4V(image summaries embedding) + GPT-4V (answer synthesis)

llamaindex #

1xx. 朴素多模态RAG如何实现？兼看RAG上下文过滤方案FILCO及202402大模型早报
1xx. Advanced Multi-Modal Retrieval using GPT4V and Multi-Modal Index/Retriever
1xx. Multimodal RAG pipeline with LlamaIndex and Neo4j
1xx. neo4j_llama_multimodal.ipynb git
