MutatingAdmissionWebhook 是如何工作的[1][chat] #

MutatingAdmissionWebhook拦截与MutatingWebhookConfiguration中定义的规则匹配的请求，然后将其发送到Webhook服务器进行处理，然后再持久化到etcd 中。 MutatingAdmissionWebhook通过向Webhook服务器发送admission请求来执行变更。Webhook服务器只是遵循Kubernetes的API 的普通HTTP服务器。

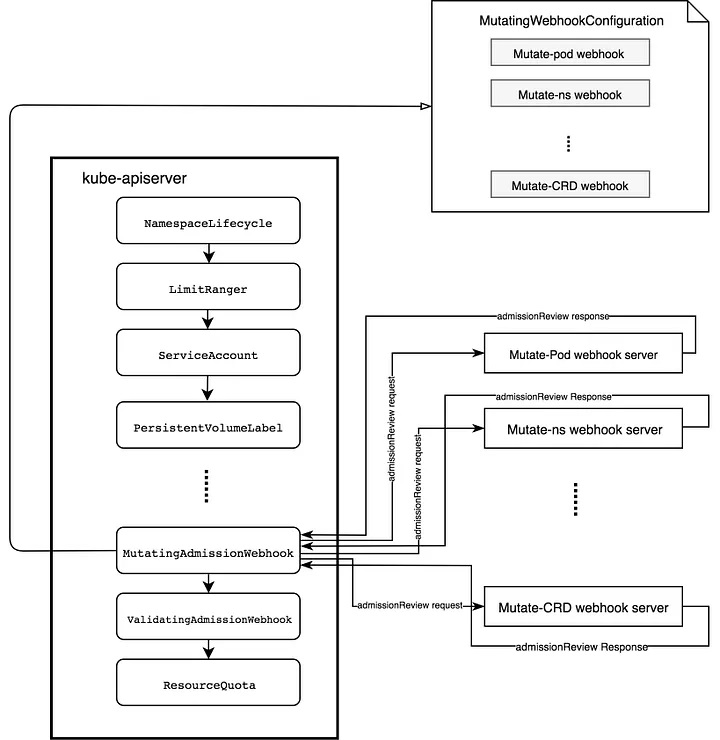

以下图示了MutatingAdmissionWebhook的工作原理:

MutatingAdmissionWebhook需要三个对象才能正常工作:

1. MutatingWebhookConfiguration

   MutatingAdmissionWebhook需要在apiserver中注册，提供MutatingWebhookConfiguration。在注册过程中，MutatingAdmissionWebhook说明以下内容:

   • 如何连接到Webhook Admission服务器
   • 如何验证Webhook Admission服务器
   • Webhook Admission服务器的URL路径
   • 定义了哪些资源和操作它处理的规则
   • 如何处理来自Webhook Admission服务器的无法识别的错误

apiVersion: admissionregistration.k8s.io/v1beta1
kind: MutatingWebhookConfiguration
metadata:
  name: sidecar-injector-webhook-cfg
  labels:
    app: sidecar-injector
webhooks:
  - name: sidecar-injector.morven.me
    clientConfig:
      service:
        name: sidecar-injector-webhook-svc   #2
        namespace: default
        path: "/mutate"
      caBundle: ${CA_BUNDLE}
    rules:
      - operations: [ "CREATE" ]
        apiGroups: [""]
        apiVersions: ["v1"]
        resources: ["pods"]
    namespaceSelector:
      matchLabels:
        sidecar-injector: enabled

2. MutatingAdmissionWebhook本身

   MutatingAdmissionWebhook是一种插件式的Admission控制器，可以配置到apiserver中。MutatingAdmissionWebhook插件从MutatingWebhookConfiguration中获取感兴趣的Admission Webhooks列表。然后，MutatingAdmissionWebhook观察到对apiserver的请求，并拦截与admission webhook规则匹配的请求，并并行地调用它们。

3. Webhook Admission Server

   Webhook Admission服务器只是一个符合Kubernetes API的普通HTTP服务器。对于每个API server的请求，MutatingAdmissionWebhook将admissionReview（用于参考的API）发送到相关的webhook admission服务器。webhook admission服务器会从admissionReview中收集信息，如object，oldobject和userInfo，然后返回一个admissionReview响应，其中包括填充了admission决策和可选的Patch以改变资源的AdmissionResponse。

服务部署 #

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: sidecar-injector-webhook-deployment
  labels:
    app: sidecar-injector
spec:
  replicas: 1
  template:
    metadata:
      labels:
        app: sidecar-injector
    spec:
      containers:
        - name: sidecar-injector
          image: morvencao/sidecar-injector:v1
          imagePullPolicy: IfNotPresent
          args:
            - -sidecarCfgFile=/etc/webhook/config/sidecarconfig.yaml  #1
            - -tlsCertFile=/etc/webhook/certs/cert.pem
            - -tlsKeyFile=/etc/webhook/certs/key.pem
            - -alsologtostderr
            - -v=4
            - 2>&1
          volumeMounts:
            - name: webhook-certs
              mountPath: /etc/webhook/certs
              readOnly: true
            - name: webhook-config
              mountPath: /etc/webhook/config
      volumes:
        - name: webhook-certs
          secret:
            secretName: sidecar-injector-webhook-certs
        - name: webhook-config
          configMap:
            name: sidecar-injector-webhook-configmap

apiVersion: v1
kind: ConfigMap
metadata:
  name: sidecar-injector-webhook-configmap
data:
  sidecarconfig.yaml: |
    containers:
      - name: sidecar-nginx
        image: nginx:1.12.2
        imagePullPolicy: IfNotPresent
        ports:
          - containerPort: 80
        volumeMounts:
          - name: nginx-conf
            mountPath: /etc/nginx
    volumes:
      - name: nginx-conf
        configMap:
          name: nginx-configmap

apiVersion: v1
kind: Service
metadata:
  name: sidecar-injector-webhook-svc  #2
  labels:
    app: sidecar-injector
spec:
  ports:
  - port: 443
    targetPort: 443
  selector:
    app: sidecar-injector
